Heavy-Duty Air Impact Wrench - High-Torque Industrial Pneumatic Tool

1.What is the Air Impact Wrench? How does it work?

WYMA® provides durable air impact wrenches that ship in bulk at direct factory prices. This tool relies on compressed air which allows you to spin high-torque nuts and bolts into place or loosen them quickly. The impact mechanism remains the most critical component. Its working principle and process: The moment you pull the trigger, compressed air fills the cylinder and forces the internal vane motor to rotate at high speeds. This rotation then carries power through the planetary gear which drives the impact mechanism. There is a hammer and an anvil inside the impact mechanism. The hammer is repeatedly pulled up and accelerated during rotation, and after accumulating kinetic energy, it is suddenly released, instantly hitting the anvil with huge force. This "knocking" impact will produce an instantaneous burst of huge torque. This torque far exceeds the continuous torque of the motor itself, allowing the wrench to easily cope with high-tightness bolts and nuts.

2.How many styles and sizes does WYMA offer? What are its typical usage scenarios?

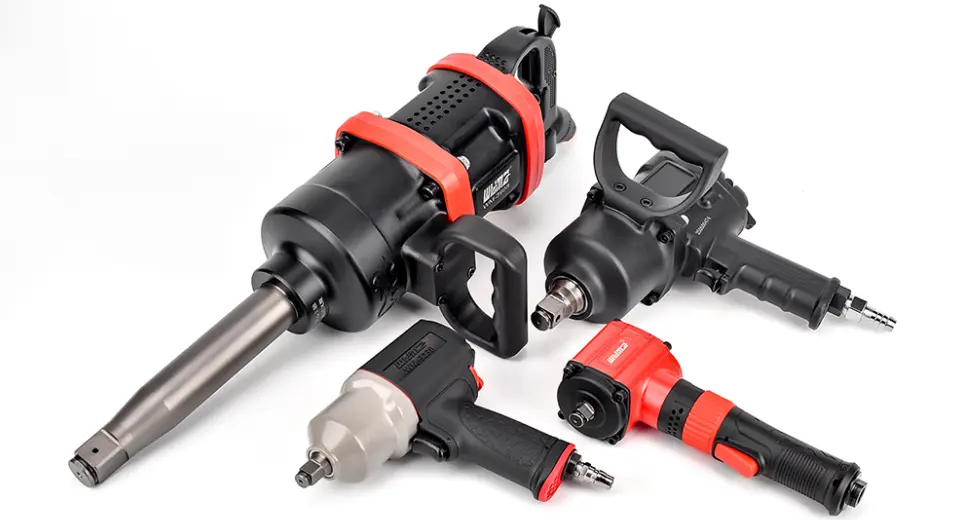

Our impact wrenches are categorized into the Regular, Right Angle, and Ratchet series. The Regular series comes in four sizes: 3/8", 1/2", 3/4", and 1". Technicians who manage motorcycle repairs or run workshop assembly lines prefer the 3/8" and 1/2" models for their small-scale tasks. What should you use for ship assembly or heavy-duty vehicle manufacturing? The 3/4" and 1" sizes provide the high torque that large-scale industrial installations and heavy machinery repairs demand. If you encounter a cramped space that a standard wrench cannot reach, the Right Angle and Ratchet series allow you to tighten nuts and bolts in those challenging spots. Our pro service team can answer any further questions you have about these tools.

3.What are its main features and advantages?

Our products adopt an embedded cylinder design with strong air pressure and great power. Its core dual-hammer pinless impact mechanism is made of forged alloy steel made by CNC heat treatment process. The body is made of lightweight plastic steel, which greatly reduces the weight of the body. It can also achieve three-speed forward and reverse torque adjustment, easily cope with various tasks, and will not tire your hands after long-term work. It is equipped with a silencer exhaust hole to quickly reduce working noise, and is suitable for various sizes such as 3/8", 1/2", 3/4", 1" and various types of sockets: internal hexagon, external hexagon, slotted, cross and torx. We also provide replaceable accessories: thickened high-pressure and explosion-proof air hoses made of PVC braiding process and various sizes and types of sockets mentioned above.

4.What are the main parameters of the Pneumatic Impact Wrench? What do they reflect?

Its three key parameters that determine how the tool performs in the field include Bolt Capacity, Max Torque, and Square Drive Size. Bolt Capacity identifies the maximum diameter of the fasteners that the impact wrench can tighten or loosen effectively. This parameter is typically expressed in millimeters and generally reflects the wrench's actual working range and applicability. What happens if you attempt to turn a bolt that exceeds this limit? You will likely damage the internal mechanism or even failure to complete the task entirely because the wrench cannot generate enough force for that bolts of this spec.

Max Torque represents the max rotational force that the impact mechanism delivers, which engineers quantify using N·m or ft-lb. When you work on automotive repairs like tightening tire nuts, you need the high torque that heavy-duty models provide. Conversely, small mechanical assembly requires a lower torque setting so you do not strip the threads. This parameter directly determines how tight an impact wrench can tighten bolts and its suitability for specific applications.

The Square Drive Size refers to the size of the front end square socket connector on the impact wrench's output shaft, which we measure in inches. This specific dimension dictates the physical compatibility between the wrench and the sockets you plan to use. Why do high-torque impact wrenches feature wider drives? Because a larger torque indicates that needs a larger heavy-duty socket to handle extreme fastening forces. If you want to achieve safe and efficient power transfer, you must select the appropriate Square Drive that locks the tool and socket together securely.

5.How do I choose and buy?

If you feel uncertain about picking your first air impact wrench, start by pinpointing exactly what you need to fix. Are you repairing heavy trucks, automobile or just small machinery? Once you defined your main work tasks, you can look for the model that meets three key specs. First, find a Max Torque that exceeds your highest demand so you always have enough power. You also want to verify that the Bolt Capacity covers the range of fasteners that you encounter on the job. Then, opt the Square Drive Size that align with the sockets which you plan to use. Finally, consider the environment where you work. For example, if you'll be holding the wrench for extended periods or working in confined spaces, pls opt for a lighter, more mini model.

6.Do you have all Air Impact Wrenches in stock? Do you support custom colors and logos?

Yes, we have all the models shown on our website in stock. We also offer custom colors and logos. If you're interested in our products, please contact our professional team to discuss quantity requirements and other custom details.

7.How can I get the latest and most affordable quote?

You can click "Send Inquiry" on the top of the product introduction page of our website to jump to the inquiry content form to send us an inquiry. Our staff will reply to you as soon as possible to communicate the details and tell you how to place an order. Alternatively, you can contact us through the following contact information.
